Fleet · Embraer Lineage 1000E · Business liner
UP-EM013
Nineteen seats, five zones and a bedroom with a shower along twenty-six metres of flat floor.

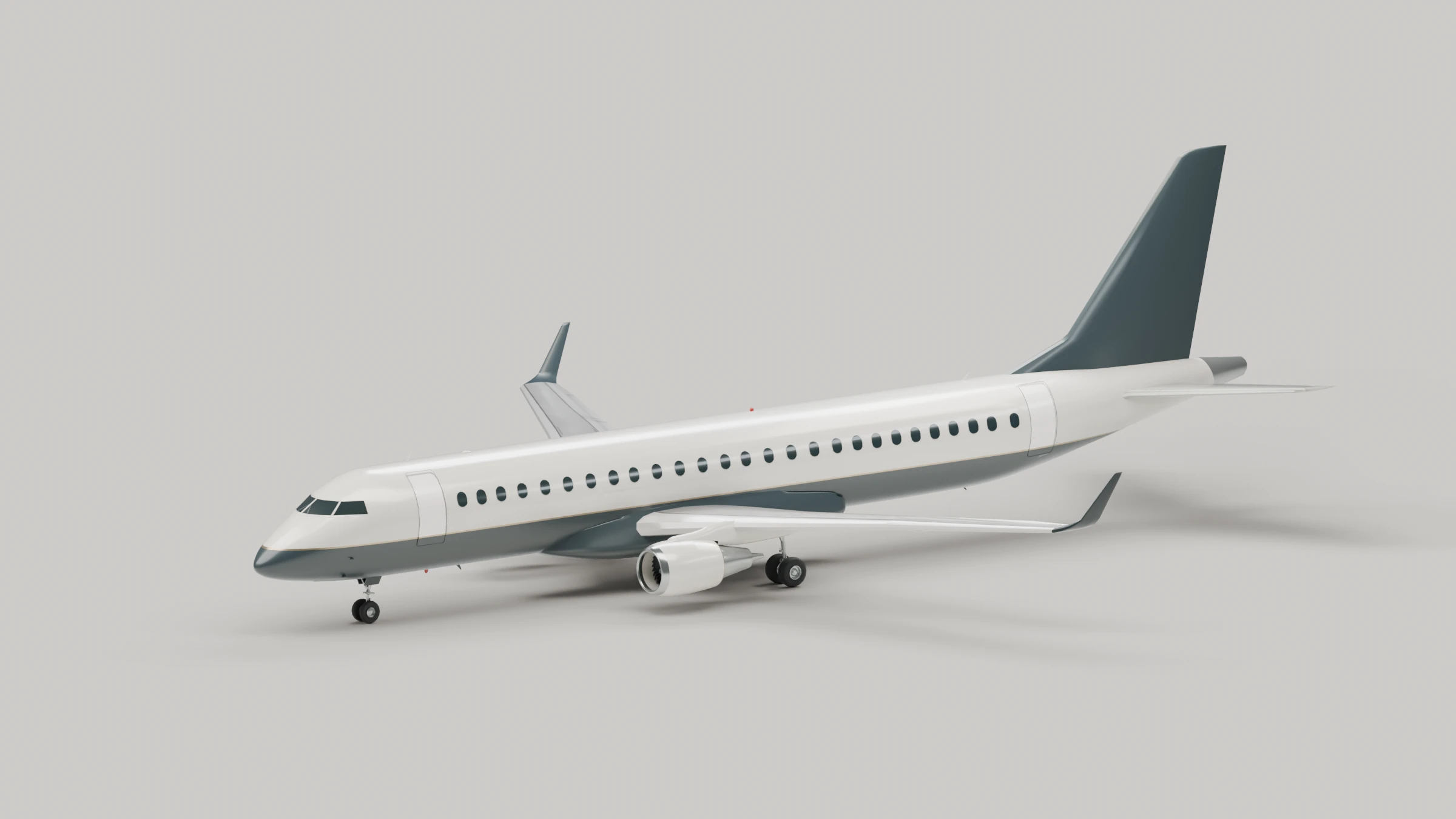

The Lineage 1000E is the largest aircraft Embraer has built for private use: the fuselage of an E190 regional airliner, finished for nineteen passengers instead of a hundred.
That is where its defining quality comes from — disproportion. Twenty-six metres of cabin divide into five zones behind sliding doors, and the bedroom, the shower and the dining table here are rooms rather than gestures at rooms.
Embraer built twenty-eight of them over eleven years and closed the line in 2020. UP-EM013 came off it near the end.
- Passenger seats
- 19
- Maximum range
- 8,519 km
- Cabin length
- 25.70 m
What sets it apart
- 01
Five separate zones behind electric sliding doors — a meeting in one and sleep in another do not interfere with each other.
- 02
Aft bedroom with a double bed, a wardrobe and its own lavatory with a full-height shower. The only Embraer ever offered with a shower.
- 03
A 9.1 m³ baggage hold — heated, pressurised, entered from the cabin in flight. Another 3.4 m³ outside it.
- 04
Three separate lavatories, so the bedroom keeps its own.
- 05
A full galley between the flight deck and the cabin: oven, refrigerator, freezer and coffee machine. Food is cooked on board, not reheated.
Cabin
Layout and zones
Five zones
Forward galley and crew rest, then a lounge with armchairs, a work zone with a conference table, a cabin with a four-place divan, and a closed bedroom aft. Between the zones there are doors, not curtains: each zone is sound-isolated.
The bedroom
A double bed, a full-height wardrobe and a lavatory with a stone-floored shower. On an eight-hour sector that means walking off the aircraft slept and changed.
Height and air
Close to two metres of headroom the whole length, and a cabin volume sized for a hundred people carrying nineteen. At altitude the cabin holds a pressure equivalent to about 2,130 metres.
- 01
Galley and crew
- 02
Lounge
- 03
Conference
- 04
Divan cabin
- 05
Bedroom and shower
Specifications
Aircraft
- Registration
- UP-EM013
- Serial number
- 19000695
- Year built
- 2018
- Cabin refit
- 2021
Performance
- Maximum range
- 8,519 km
- Range with a full cabin
- 7,775 km
- Cruise speed
- 843 km/h
- Maximum speed
- 874 km/h
- Service ceiling
- 12,497 m
- Maximum take-off weight
- 54,500 kg
Cabin
- Passenger seats
- 19
- Cabin zones
- 5
- Cabin length
- 25.70 m
- Cabin width
- 2.68 m
- Cabin height
- 1.97 m
- Cabin volume
- 115.7 m³
- Baggage hold
- 12.5 m³
- Lavatories
- 3
- Berths
- 4
Airframe and engines
- Engines
- 2 × General Electric CF34-10E7
- Crew
- 2 + 2
- Length
- 36.24 m
- Wingspan
- 28.72 m
- Height
- 10.57 m
Range
Non-stop destinations from Almaty
Non-stop from Almaty
19 destinations- BishkekFRU210 km
- TashkentTAS679 km
- AstanaNQZ951 km
- DelhiDEL1,645 km
- BakuGYD2,247 km
- DubaiDXB2,814 km
- MoscowVKO3,124 km
- BeijingPEK3,271 km
- IstanbulIST3,923 km
- Hong KongHKG4,113 km
- ShanghaiPVG4,132 km
- ViennaVIE4,601 km
- FrankfurtFRA5,089 km
- ZurichZRH5,191 km
- TokyoHND5,329 km
- SingaporeSIN5,379 km
- GenevaGVA5,414 km
- ParisLBG5,544 km
- LondonLTN5,600 km
Maximum range is quoted for four passengers at long-range cruise with NBAA IFR reserves. Range with a full cabin is given separately. Distances to cities are great-circle; a real track runs 3–8% longer, and the detour around closed airspace adds more. Every flight is planned individually.
